Smart Support. Simple Installation

Clickdeck Pedestals are a next-generation modular support system designed for elevated decking and paver surfaces. Built for performance, they provide a strong, stable, and adjustable foundation ideal for residential and commercial applications alike.

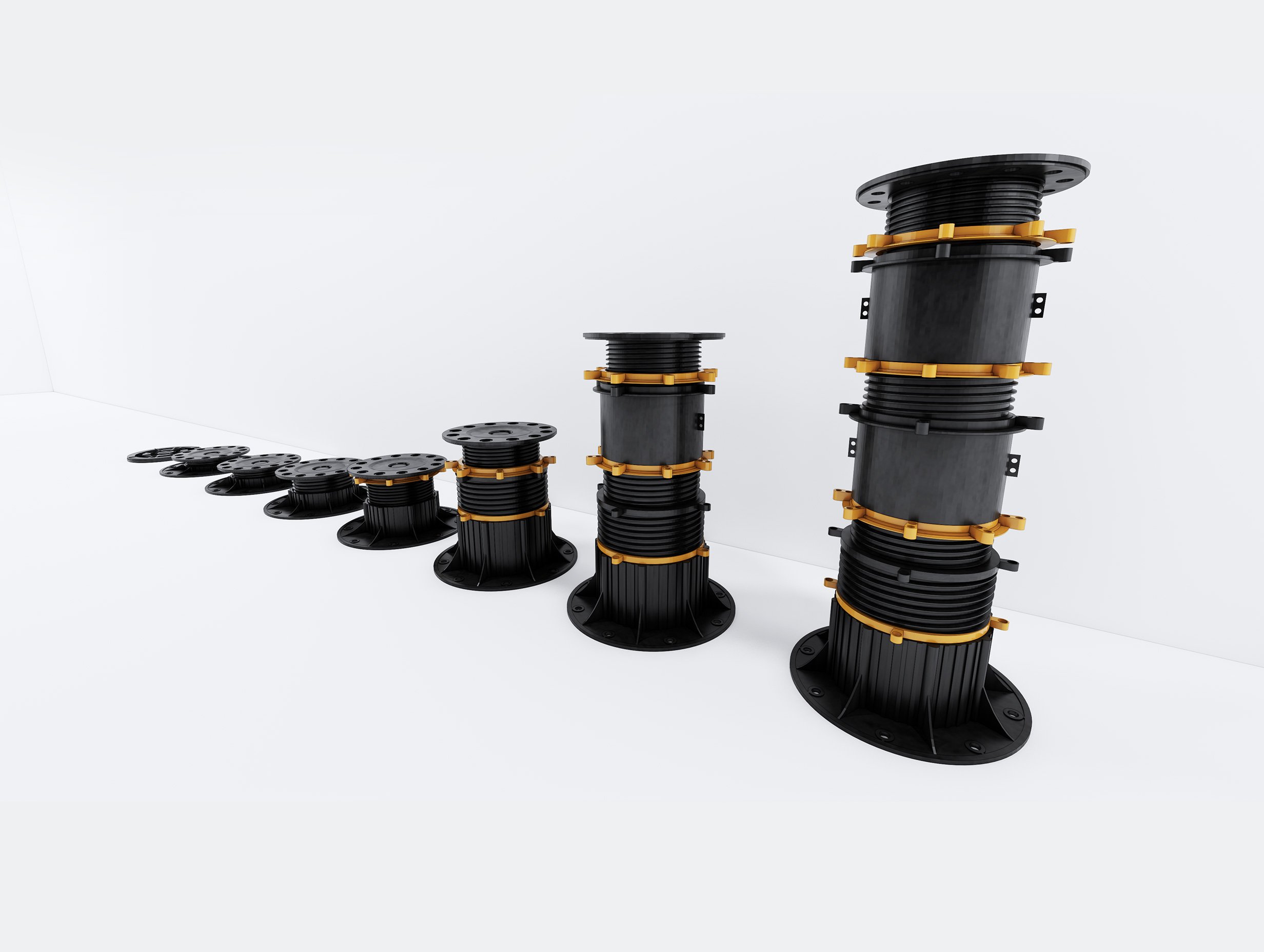

Clickdeck Pedestals

CLICKDECK Adjustable Deck Pedestal System

Height Adjustable

Supports a wide range of finished heights using
a minimal number of modular components —
flexible for various project needs.

Multi-Surface Compatible

Suitable for use with timber or composite decking, stone pavers, tiles, and other surface types.

Slope Correction

Optional slope correctors allow for up to 5% compensation, ensuring a level surface even on uneven or sloped substrates.

Durable & Weatherproof

Engineered to resist warping, cracking, or deterioration in harsh outdoor environments.

Tool-Free Installation

Simple, intuitive setup with no special tools required — saving time on-site.

Tested to Over 800kg Load

Independently certified to support heavy
loads, making it ideal for both residential and
commercial applications.

Versatile Support
for Every Surface

Engineered for Clickdeck Aluminium Joists,
Timber Joists & Paver Installations

Clickdeck Pedestals provide the easiest way to level decking and tile projects, whether you’re working with aluminium joists, timber joists, or pavers. Designed for strength, versatility, and simplicity, each pedestal offers precise height adjustment and slope correction with no need for complex tools or preparation. This modular system is ideal for builders and landscapers looking for a fast, professional solution across a wide range of surfaces and substrates.

2. Pedestal Head

Precisely engineered to work with all Clickdeck accessories, the head attaches securely to the base or an extender and supports multiple surface types.

3. Extender

Increases the pedestal height with minimal effort. Up to two extenders can be used to reach the maximum height of 440 mm.

4. Locking Ring

1. Joist Holder

Heavy-duty head designed to provide stable and secure support for Clickdeck aluminium joists and decking profiles. Built for durability and precise alignment.

Secures each component at the desired height. Rings fasten between segments to lock the system in place and prevent movement.

5. Pedestal Base

The wide base distributes weight evenly and includes drainage slots to prevent water build-up. Designed for stability on all surfaces.

6. Base Slope Corrector

Positioned under the base, this adjustable element compensates for gradients from 0% to 5%. It’s optional based on slope requirements and site conditions.

Finished Floor Heights

Load & Engineering Considerations: – Residential decks under 1m: 2kPa live load, 0.2kPa dead load – For higher loads, site-specific engineering is required – Span tables available from 2kPa to 5kPa

MODEL NO.	Height Range	Finished Floor Heights (includes 25mm deckboard + profile combination below)
		28 JOIST ONLY	55 JOIST ONLY	55 JOIST 55 BEARER	55 JOIST 110 BEARER	110 JOIST 110 BEARER
FX 0	10-25mm	63-78	90-105	145-160	200-215	255-270
PP A	24-35mm	77-88	104-115	159-170	214-225	269-280
PP B	33-47mm	86-100	113-127	168-182	223-237	278-292
PP C	45-70mm	98-123	125-150	180-205	235-260	290-315
PP D	65-110mm	118-163	145-190	200-245	255-300	310-355
PP E	95-190mm	148-243	175-270	230-325	285-380	340-435
PPE + 1 EX	185-325mm	238-378	265-405	320-460	375-515	430-570
PPE + 2 EX	260-440mm	313-493	340-520	395-575	450-630	505-685
